Stainless steel low profile scissor lift

TYPE: Stainless steel
Specifications
Capacity:600 - 3000 kg
Travel:545 - 1100 mm
Closed height:85 - 105 mm
Length:1200 - 3000 mm
Width:800 - 1200 mm
Surface treatment
StainlessStainless
Available in ATEX

Available in ATEX

Available in Hygienic Design

Available in Hygienic Design

Better manual handling

Better manual handling

Technical specifications

TRANSLYFT standard program
Type Capacity kg (kg) Travel mm (mm) Closed height mm (mm) Total raised height mm (mm) Length mm (mm) Width mm (mm) Lifting time (sec) Motor kW (kW) Weight kg (kg)

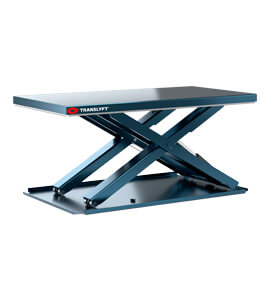

TCB 1000 1000 715 85 800 1500 800 12 0.75 275
TCB 1000 F 1000 715 85 800 1500 1000 12 0.75 275
TCB 1500 1500 715 85 800 1500 800 15 1.1 300
TCB 1500 F 1500 715 85 800 1500 1000 15 1.1 345
TCB 2000 2000 695 105 800 1500 800 16 1.1 340
TCB 2000 F 2000 695 105 800 1500 1000 16 1.1 360
Hygienic Design
HUB 1000

U-shaped lifting table

1000 715 85 800 1450 1085 12 0.75 235
HUB 2000

U-shaped lifting table

2000 695 105 800 1500 1200 16 1.1 325
HLH 2000 2000 830 180 1010 2600 800 36 0.75 325
U-shape

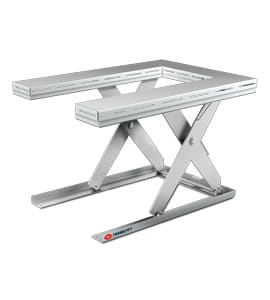

TUB 1000

U-shaped lifting table

1000 715 85 800 1450 1085 12 0.75 235
TUB 2000

U-shaped lifting table

2000 695 105 800 1500 1200 16 1.1 325

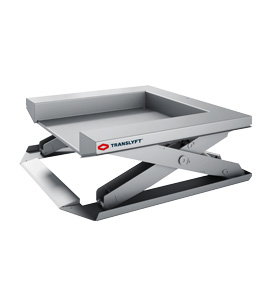

Floor lift
FLL 1000 1000 900 210 1110 1630 1650 30 1.1 -

TRANSLYFT manufactures the highly sought after low profile stainless steel lifting tables that are used throughout the European industry.

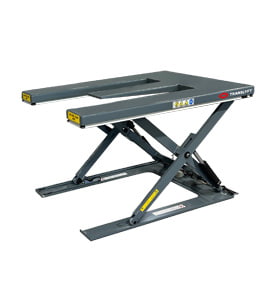

The standard models come in a closed platform, an U-shaped platform, an E-shaped platform and the FLL model.

These types are highly flexible because they are mounted directly on the floor. They are all with separate power unit.

The stainless steel low profile lifting tables are ideel for packing lines and in palletizing areas. Because of the closed height, they are perfect for handling of goods with fork lift.

Ideal for e.g.:

  • Packing areas
  • Palletizing / Depalletizing
  • As adjustable work positioner

Our stainless steel low profile scissor lifts can also be manufactured in ATEX, Hygienic Design, galvanized steel, and painted steel. See our other pallet lifter here.

Show moreShow less

Get data sheet for stainless steel low profile scissor lift


Data sheet low profile lifting tables




Get data sheet for our Floor Level Lifter


Floor Level lifter
