Loading Bay Lifts Built for Modern Logistics
Warehouses, logistics centres and industrial facilities require efficient loading and unloading operations, where uptime and workflow continuity have a direct impact on productivity. A TRANSLYFT loading bay lift is engineered to connect vehicle loading bays and internal transport systems safely and efficiently, while moving huge items precisely and smoothly.
When looking for some sort of levelling solutions it is often a choice between traditional dock levelers and a loading bay lift. The difference is that a dock leveller only compensates for minor height differences and a loading bay lift provides full vertical movement. The loading bay lift creates a far more flexible solution when working with varying truck heights, containers, roll cages, pallets, and goods handling equipment is required. The result is faster loading operations, improved ergonomics, and a safer working environment.
Because every workflow is different, all TRANSLYFT loading bay lifts are customised to the application and operational requirements. We understand that every lift is unique, and our solutions are developed to support not only reliability and efficiency, but also the future readiness of your workflow.
Detailed Specifications
TRANSLYFT loading bay lifts are ideal for a wide range of industrial applications and can be tailored to specific loads, traffic volumes, and installation conditions. See how loading bay lifts improve workflows and safety.
Typical capacities range from 1,000 kg to 6,000 kg, and travel heights from 550 mm to 2,000 mm allow for seamless transitions between many vehicle and dock levels. The platform's dimensions can be adjusted to suit the application, ranging from 900 mm to 5,000 mm in length and 650 mm to 3,000 mm in width.
Every loading bay lift is based on a strong hydraulic scissor lift design for maximum stability and longevity.
A TRANSLYFT loading bay lift always comes with safety trip bars, mechanical maintenance locks, and hose burst valves. There are other safety features available, including:
• Anti-slip platform surfaces.
• Rails and Gates• Net mesh, bellows, or roller curtains.
• Beacon lights and sound signals
TRANSLYFT provides a variety of material and design options for specialized industries and demanding manufacturing settings, such as:
• Stainless steel solutions for corrosive situations.
• Galvanized steel for outdoor applications.
• ATEX-approved solutions for explosive environments.
• Painted steel for common industrial applications
Location, location, location

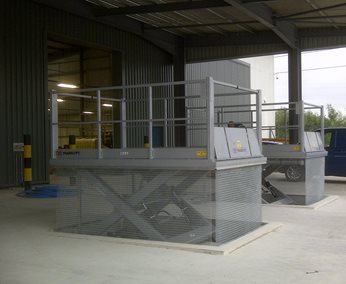

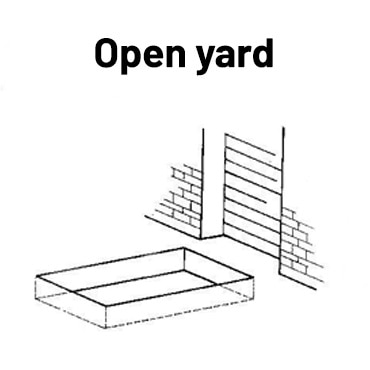

Loading bay lifts can be configured for both indoor and outdoor use depending on the operational setup and available building layout.
We always recommend a galvanized solution for outdoor loading areas because this solution offers excellent durability against moisture, dirt, and changing weather conditions.
Indoor loading bay lifts are often integrated directly into production, and warehouse flows where smooth goods handling and ergonomic working conditions are essential.
Mounting and installation

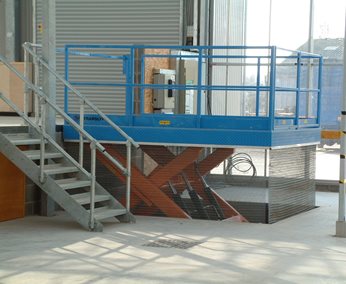

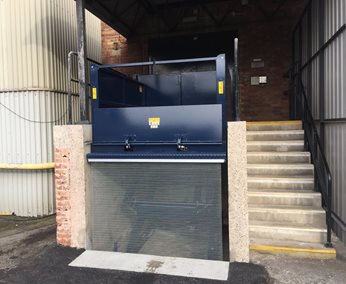

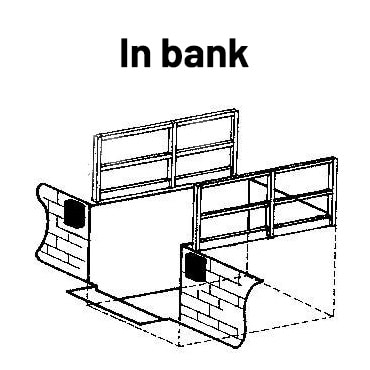

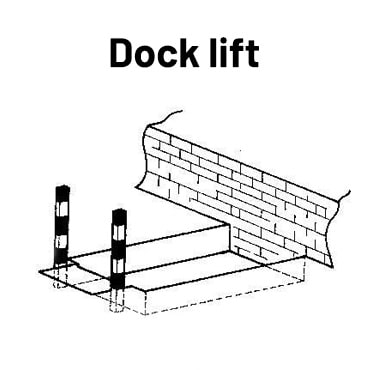

TRANSLYFT loading bay lifts can be either mounted in a pit or directly onto the ground. In both solutions the loading bay is bolted to the ground for stability.
Pit mounted lifts are installed flush with the floor and create a seamless transition for pallet trucks, trolleys, and wheeled equipment. This solution is often preferred where space optimisation and smooth traffic flow is a priority.
Loading bay lifts mounted directly onto the ground are perfect when structural modifications need to be kept to a minimum or where retrofit solutions are required. They are flexible and can typically be implemented into existing facilities more quickly.
We offer installation in several countries. Give us a call to hear more about this or to make sure that your loading bay lift is installed correctly.
