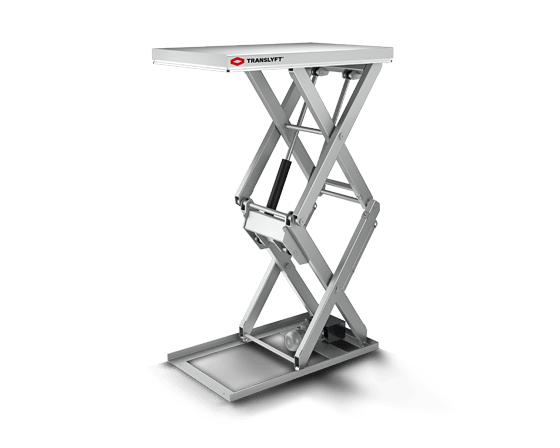

Stainless steel double & triple scissor lift tables

TYPE: Lifting table
Specification range See Technical specifications for details
Capacity:500 - 6000 kg
Travel:1100 - 4500 mm
Closed height:270 - 1000 mm
Length:900 - 4000 mm
Width:650 - 2500
Surface treatment
GalvanizedGalvanized
StainlessStainless
PaintedPainted
translyft double vertical lifting table
translyft tripple vertical lifting table
Get a Quote
Available in ATEX

Available in ATEX

Better Levelling

Better Levelling

Increased lifting capacity

Increased lifting capacity

Technical specifications

TRANSLYFT standard program
Type Capacity kg (kg) Travel mm (mm) Closed height mm (mm) Total raised height mm (mm) Length mm (mm) Width mm (mm) Lifting time (sec) Motor kW (kW) Weight kg (kg)
Double scissors
TRD 500 500 110 270 1370 900 650 18 0.37 140
TRD 1000 1000 1100 270 1370 900 650 18 0,75 175
TRD 2000 2000 1000 335 1335 900 800 33 0,75 275
TLD 1000 1000 1600 375 1975 1300 800 30 0.75 310
TLD 1000 F 1000 1600 375 1975 1300 1000 30 0.75 340
TLD 2000 2000 1600 400 2000 1300 900 32 2.2 375
TLD 2000 F 2000 1600 400 2000 1300 1000 32 2.2 410
TBD 1000 1000 1800 400 2200 1500 900 30 2.2 450
TBD 1000 B 1000 1800 400 2200 1500 1200 30 2.2 495
TBD 2000 2000 1800 400 2200 1500 900 42 2.2 490
TBD 2000 B 2000 1800 400 2200 1500 1200 42 2.2 530
TMD 1000 1000 2150 400 2550 1700 900 41 2.2 500
TMD 1000 B 1000 2150 400 2550 1700 1200 41 2.2 570
TMD 2000 2000 2150 400 2550 1700 900 59 2.2 605
TMD 2000 2000 2150 400 2550 1700 1200 59 2.2 650
TMD 3000 3000 2150 440 2590 1700 1200 65 2.2 750
TMD 3000 B 3000 2150 440 2590 1700 1500 65 2.2 790
TAD 1000 1000 2800 400 3200 2000 1200 49 2.2 685
TAD 2000 2000 2800 400 3200 2000 1200 54 3 760
TAD 3000 3000 2800 475 3275 2000 1300 60 4 970
TSD 1500 1500 3000 450 3450 2200 1300 50 2.2 775
TSD 3000 3000 3000 500 3500 2200 1300 65 4 1100
TTD 3000 3000 3000 600 3600 2500 1300 80 4 1500
TPD 10000 10000 4500 1100 5600 3800 2000 100 11 5000
TXD 4000 4000 4500 800 5300 4000 2000 80 7.5 3100
TXD 6000 6000 4500 1000 5500 4000 2500 90 11 4800
Triple scissor
TRT 500 500 1500 400 1900 900 650 30 0.37 195
TLT 1500 1500 2400 550 2950 1300 900 30 495
TMT 1500 1500 3300 600 3900 1700 1200 65 2.2 1180
TMT 1500 B 1500 3300 600 3900 1700 1500 65 2.2 1220
TMT 2500 2500 3300 600 3900 1700 1200 65 2.2 1040
TST 1500 1500 4500 800 5300 2400 1500 43 5.5 1300
TST 2500 2500 4500 800 5300 2400 1500 56 5.5 2400
TST 3500 3500 4000 1000 5000 2500 1500 88 5.5. 2665
TPT 1500 1500 5700 1000 6700 3200 2000 70 5.5 3785
TXT 2000 2000 7000 1015 8015 4000 2000 75 7.5 4175
Show more Show less Show more

A double vertical scissor lift platforms is ideal for use as a loading bay or as a lifting table between different floors.

A triple scissor lifting table is mostly used as a goods lift.
However, both the double and triple scissor lifting tables can be used for other processes such as:

  • - Lifting/lowering of goods
  • - Manual handling
  • - Compensation for level differences at conveyors
  • - Machine infeed / outfeed
  • - Pallet loading / unloading
  • - Packing lines
  • - Work platform


All types can be supplied with a great number of various accessories in order to suit your specific needs e.g.:


Our double scissor lift tables can be manufactured in ATEX, Hygienic Design, galvanized steel, stainless steel and painted steel.


Our triple vertical scissor lifts allows you to lift extremely heigh. Normally the triple scissor lift is used as a goods lift but it can also be used for:


Our triple vertical lift can be manufactured in ATEX, Hygienic Design, Galvanized steel, Stainless steel and painted steel.


Show moreShow less

Get data sheet for double vertical lifting tables


Data sheet


Get data sheet for triple vertical lifting tables

Data sheet

Advantages of a scissor lift table

There are many lifting solutions out there. However, a scissor lift table has many benefits that you may not have been aware of.


Scissor Lift Table

Ease the work and increase efficiency


Lifting tables have been invented to ease physical work for employees, avoid injuries due to overload while increasing efficiency. Here you can read more about back pain, lost working days and ergonomics:



White paper on ergonomics


picture showing how to and how not to lift

Spareparts

TRANSLYFT can deliver spareparts to all our lifting tables.


Whether it is a cylinder, oil or wheel that needs to be changed, we have it in stock so we can send it to you quickly. Write to our spareparts  mail or contact Michael at tel. +45 9647 4623


different spareparts for lifting tables

Bespoke solutions

Did you not find a product that fit your exact needs? TRANSLYFT are experts in both small and large adjustments of our products so please do not hesitate to give us a call and hear more.


Contact us

Surface Treatments

TRANSLYFT can manufacture most products in stainless steel, galvanized steel and painted. Read more about the three surface treatments here


Surface treatments

stainless steel surface
