Get data sheet for mastlifts
|Capacity:||600 - 1200 kg|
|Travel:||0 - 8000 mm|
|Closed height:||120 mm|
Increased lifting capacity

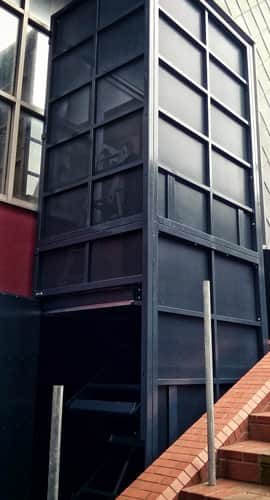

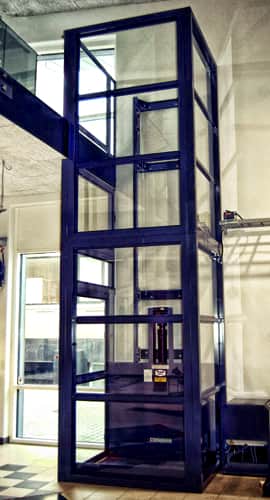

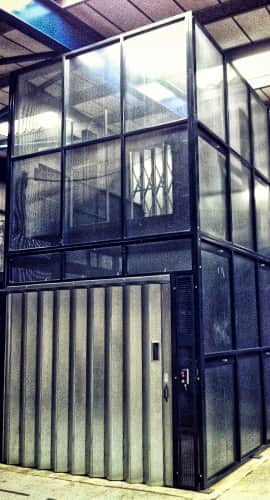

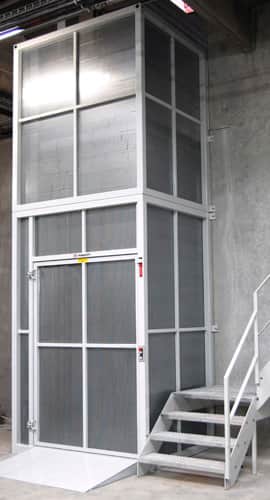

Our Mastlift can be used at several levels and is available with many different functions. Among other things, smaller platform and high travel. The Mastlift has a low installation height, so no pit or other construction work is required. The Mastlift can either be mounted on existing walls or with a freestanding shaft with doors incl. interlocks.
The Mastlift construction is strong and stable and is easy to maintain and service. The lift is freestanding e.g. in locked machine cabinet.
The Mastlift is fitted with TRANSLYFT freight elevator control which includes autolevel system and soft start / stop.
Our Mastlift can be delivered in ATEX, Hygienic Design, stainless steel, galvanized steel and painted steel.
|Type||Capacity (kg)||Travel (mm)||Closed height (mm)||Total raised height mm (mm)||Length (mm)||Width (mm)||Lift time (sec)||Motor (kW)||Weight (kg)|
|MTL 600||600||0 - 3250||120||-||1400||1200||45 mm/sek||2.2||-|
|MTL 1200||1200||0 - 3000||120||-||1400||1200||60 mm/sek||4.0||-|
Did you not find a product that fit your exact needs? TRANSLYFT are experts in both small and large adjustments of our products so please do not hesitate to give us a call and hear more.
