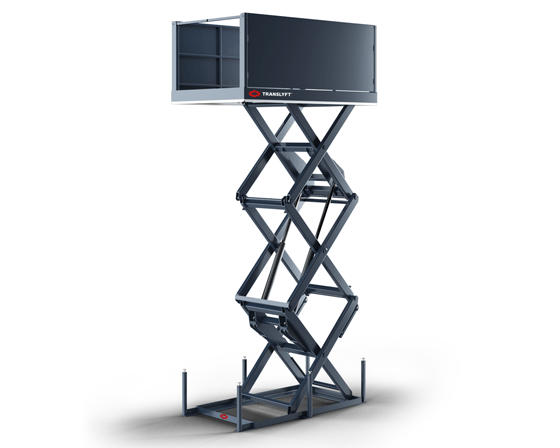

Scissor goods lift

TYPE: Lift
Specifications
Capacity:500 - 10000 kg
Travel:550 - 7000 mm
Closed height:160 - 1015 mm
Length:900 - 4000 mm
Width:650 - 3000 mm
Surface treatment
GalvanizedGalvanized
StainlessStainless
PaintedPainted
Available in ATEX

Available in ATEX

Better Levelling

Better Levelling

Increased lifting capacity

Increased lifting capacity

Technical specifications

TRANSLYFT standard program
Type Capacity kg (kg) Travel mm (mm) Closed height mm (mm) Total raised height mm (mm) Length mm (mm) Width mm (mm) Lifting time (sec) Motor kW (kW) Weight kg (kg)
TLD 2000 2000 1600 400 2000 1300 900 32 2.2 375
TLT 1500 1500 2400 550 2950 1300 900 30 2.2 495
TSD 1500 1500 3000 450 2450 2200 1300 50 2.2 775
TST 2500 2500 4500 800 5300 2400 1500 56 5.5 2400
TTD 3000 3000 3000 600 3600 2500 1300 80 4 1500

TRANSLYFT goods lifts are for use between different levels and mezzanins up to 4500 mm and are based on our scissor construction.

The goods lift can be delivered complete with shaft, doors, gates, handrail, scissor protection with for example bellow or chain mesh. The doors and gates are delivered with interlocks for security reasons.

Our Goods lift can be manufactured in painted steel. Please ask for specialized models in e.g. stainless steel, ATEX or customized measeurements.

Show moreShow less

Get data sheet for scissor goods lifts

Data sheet

translyft galvanised goods lift mounted outside

Different Goods lifts

translyft goods lift in warehouse
translyft goods lift with shafts
translyft goods lift in furniture warehouse

Please call us at tel. 0870 904 7775 if you have any questions about which goods lift we can supply or need further details. Or click the contact us button and fill in the form and we will contact you as quickly as possible:
